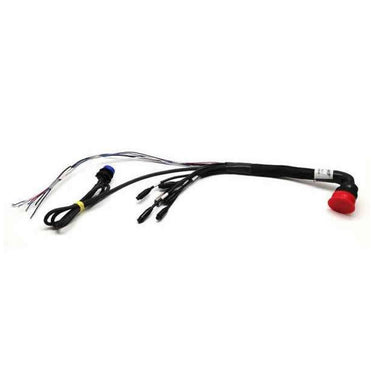

AiM Primary Harness for MXM, MXS, MXG, MXL2 Dashes This is the harness that comes with new AIM MXM, MXS, MXG and MXL2 dashes. Having a 37 pin connector on the dash side and break-out connections for 12v+, 12V-, CAN ECU connection, K line, analog sensor channels 1,2,3,4, digital wheel speed, optical lap timing sensor input, and CAN expansion. For use when you move your primary AiM Dash Logger from your primary vehicle to your back-up vehicle. Also commonly used to move your AiM system from your race car to your ChampCar or Lemons car. By using a few extra cables you can have your complete AiM data system in more than one vehicle with minimal effort. AiM 37 Pin Primary Harness for MXM, MXS, MXG, MXL2 Dashes Harness Details Manufacturer: AiM Manufacturer part number: V02573010 Analog sensor channels 1, 2, 3, 4  Digital wheel speed channel 1  Optical lap timing sensor input  CAN expansion  Power+ Ground- CAN ECU connection K Line connection

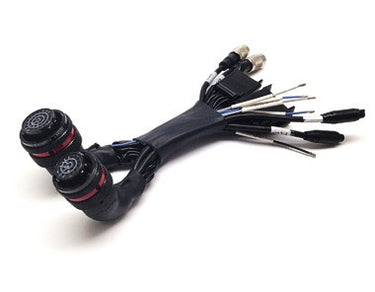

AiM MXL to MXG, MXS, MXL2 Adapter Harness For use when you upgrade from an AiM MXL Pista or Strada to the modern MXS, MXG, MXP or MXL2 dash. You could remove the MXL harness from the chassis and replace it with the supplied harness that comes with the MXS, MXG or MXL2 or use this adapter harness to make installation easy. AiM AiM MXL to MXG, MXS, MXL2 Adapter Harness Details Manufacturer: AiM Manufacturer part number: V02573090 Connector 1: 22 pin Connector 2: 37 pin 2 Speed inputs 2-4 3 CAN inputs CAN/K-line ECU wiring 12VDC+/- This special harness has one 22-pin and one 37-pin Deutsch connector to plug into the back of the MXL 2 or MXG dash. The other end of the harness has female connectors designed to accept your current MXL wiring harness. You won't have to cut wires, re-run cables, or even unplug your sensors! Simply disconnect the two rectangular AMP connectors from the back of your MXL and plug them into this harness. Your lap timing receiver and anything plugged into the CAN port can be connected to the harness as well. This harness also provides connections for speed inputs 2-4, 3 CAN inputs, and CAN/K-line ECU wiring, for full access to all of the advanced features of the MXL 2 and MXG/MXS. Not compatible with MXL Pro or MXL Pro05 wiring harnesses. If you are unfamiliar with Bend Radius, Wikipedia saves us: Bend radius, which is measured to the inside curvature, is the minimum radius one can bend a pipe, tube, sheet, cable or hose without kinking it, damaging it, or shortening its life. The smaller the bend radius, the greater is the material flexibility (as the radius of curvature decreases, the curvature increases).

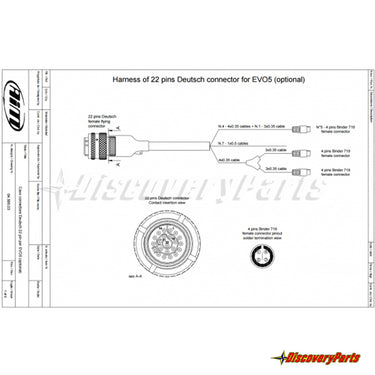

AiM 22 Pin Aux Harness Straight Connector EVO 5 This straight harness plugs into the 22-pin connector on the AiM logger. Several of the advanced functions rely on this harness, which is not included with the standard kit. If you would like to add 4 more analog channels, 2 more digital connections and connect easily to your RS232 or CAN-2 ECU, the AiM V02586030 is your next best upgrade. The AiM EVO5 Logger 22 Pin Auxiliary Harness will provide access to the following functions: Analog sensor channels 5, 6, 7, 8 Digital wheel speed sensor inputs 2, 3, 4 Digital 12v outputs 1, 2 RS232 ECU connection Can-2 ECU connection The factory harness that comes with the AiM Dash/Logger allows only 4 inputs. If you would like more inputs then this is your harness.For use with AiM EVO5 only. Not compatible with MXG, MXS, MXM, MXL Pro / MXL Pro05 or EVO3. AiM EVO5 Logger 22 Pin Auxiliary Harness Details: Manufacturer: AiM Manufacturer part number: V02586030 Harness Angle: Straight AiM EVO5 Logger 22 Pin Auxiliary Harness Primary use: Adding analog sensors greater than 4. Your factory harness will allow up to 4 analog channels (sensors), this may be (1) Water Temperature, (2) Oil Temperature, (3) Oil Pressure and (4) Brake Pressure. Using the AiM 22 Pin Auxiliary harness you now can add four more analog channels (sensors) like (5) Steering Angle, (6) Throttle Position, (7) Gear Box Temperature, and (8) Differential Temp. Another way we see this cable used is independent shock travel (all corners) or engine oil temperature pre-cooler and oil temperature post-cooler.

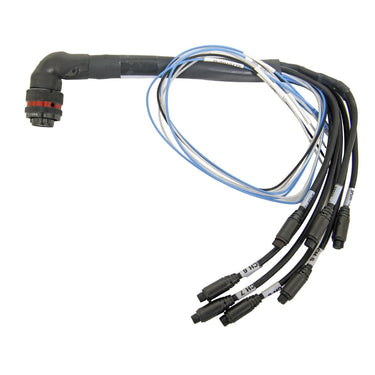

AiM 90 22 Pin Auxiliary Harness for MXP, MXG, MXS & MXL2 Dashes 90 This 90 harness plugs into the 22-pin connector on either the AiM MXP, MXL2, MXM, MXG, MXS dash, and AiM EVO5 Logger. Several of the advanced functions rely on this harness, which is not included with the standard kit. AiM 22 Pin Auxiliary Harness for MXP, MXG, MXS, MXL2 Dashes Details: Manufacturer: AiM Manufacturer part number: V02573020 Alternate part number: MC-249 Harness Angle: 90 The AiM 22 Pin Auxiliary Harness will provide access to the following functions: Analog sensor channels 5, 6, 7, 8 Digital wheel speed sensor inputs 2, 3, 4 Digital 12v outputs 1, 2 RS232 ECU connection The factory harness that comes with the AiM MXG, MXS, MXL2 allows only 4 inputs. If you would like more inputs then this is your harnessFor use with AiM MXS, MXP, MXL2, MXG, and EVO5 Dash/Loggers. Not compatible with older AiM MXL Pro / MXL Pro05 or AiM EVO series. AiM 22 Pin Auxiliary Harness for MXP, MXG, MXS, MXL2 Dashes Primary use: Adding analog sensors greater than 4. Your factory harness will allow up to 4 analog channels (sensors), this may be (1) Water Temperature, (2) Oil Temperature, (3) Oil Pressure and (4) Brake Pressure. Using the AiM 22 Pin Auxiliary harness you now can add four more analog channels (sensors) like (5) Steering Angle, (6) Throttle Position, (7) Gear Box Temperature, and (8) Differential Temp. Another way we see this cable used is independent shock travel (all corners) or engine oil temperature pre-cooler and oil temperature post-cooler.

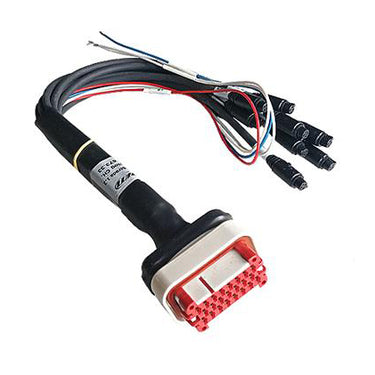

AiM 23 Pin Aux Harness for MXS 1.2 Strada, MXP Strada, and MXG 1.2 Strada AiM specially designed wiring and cables for the connection of all AiM electronic components to be useful and fundamental. AiM 23 Pin Aux Harness for MXS 1.2/1.3 Strada, MXP Strada, and MXG 1.2/1.3 Strada Details: Manufacturer: AIM Manufacturer part number: V02573330 AiM 23 Pin Aux Harness for MXS 1.2/1.3 Strada, MXP Strada, and MXG 1.2/1.3 Strada Compatibility: MXS 1.2/1.3 Strada MXP Strada MXG 1.2/1.3 Strada

AiM Mercury 849849 AXX_New+FC12 ECUs Mercury 849849 ECUs feature a serial communication protocol. To connect AiM device to these ECU adedicated AiM interface cable is needed. This cable part number is: X50EN849849. Here below it isshown. Mercury 849849 ECUs are equipped with a 4 pins AMP female connector that must be connected toAiM interface male one shown here below. Mercury 849849 AXX interface cable has four flying leads you can connect to AiM devices.Please refer to your device pinout to know the pins to be used. Here below you find wiring diagram and connection scheme Cable Function AiM cable colour AiM device RS232RX White RS232RX/ECU RS232TX RS232TX Blue RS232TX/ECU RS232RX +12V Red +12V GND Black GND Please note:AiM wiring harnesses supplied after September 2018 have the following labels:ECU RS232TX (white) to be connected to ECU TX pinECU RS232RX (blue) to be connected to ECU RX pin (if indicated in the connection table above)AiM wiring harnesses supplied before September 2018 have the following labels:RS232RX (white) to be connected to ECU TX pinRS232TX (blue) to be connected to ECU RX pin (if indicated in the connection table above) Race Studio configuration Before connecting AiM devices to the ECU, set all functions using AiM software Race Studio. Theparameters to set in the device configuration are:• ECU manufacturer Mercury• ECU Model according to your ECU version or to its firmware version: 849849_Axx849849_Axx_New FCR12 Available Channels Channels received by AiM devices connected to “Mercury – 849849_Axx”, “849849_Axx_New” or“FCR12” protocol are the same and here below they are listed: CHANNEL NAME FUNCTION MER_RPM RPM MER_TAIR Intake air temperature MER_TENG Engine temperature MER_MAP Manifold air pressure MER_INJT Injection time MER_ECU_TRIM ECU Trim MER_FUEL_GRP1 Injection volume for injectors group 1 MER_FUEL_GRP2 Injection volume for injectors group 2 MER_FUEL_GRP3 Injection volume for injectors group 3 MER_FUEL_A Number after air temperature compensation MER_FUEL_B Number after engine compensation MER_FUEL_C Number after dynamic acceleration compensation MER_FUEL_D Number after cold piston compensation MER_FUEL_T Fuel temperature MER_ECU_TEMP ECU Temperature MER_ONTIMECONS Real time consumption MER_ECU_BATT Battery supply

Harness Adapter for 2004-2007

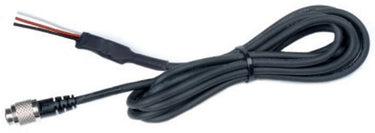

AiM Solo 2 & Solo 2 DL Vehicle Power Wiring Harness Now you can power your AiM Solo 2 and Solo 2 DL for your entire endurance race without the need to charge the battery. The power cable that comes with the AiM Solo 2 in the package is set up for a cigarette lighter connection, but this is a hard wire connection for true race cars. This harness connects your AiM Solo 2 to your vehicle's fuse box wiring. One end has a 5-pin 712 (screw-in) connector to fit the Solo, and the other has 2 non-terminated wires (Power and Ground). AiM Solo 2 & Solo 2 DL Vehicle Power Wiring Harness Details: Manufacturer: Aim Manufacturer part number: V02589010 Fits Solo DL: No Fits Solo 2 DL: Yes Fits Solo Base Model: No Fits Solo 2 Base Model: Yes Pins on AiM Solo Side: 5 Pin Thread on connector Vehicle Chassis Ends: 2 Non terminated wires Vehicle Chassis Ends Break Out: Power, and Ground If you are putting a Solo2 into an older vehicle and need a direct to battery/fuse box power supply cable, use this harness for an easy install.

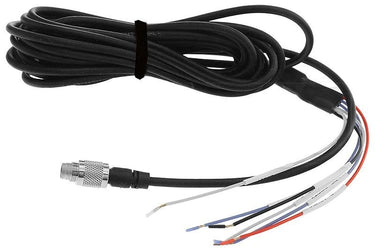

AiM Solo 2 DL CAN/RS232 Wiring Harness (New Solo 2 DL) Moving your Solo2 DL from one car to another and need another harness for only power or both power and data input, this is your cable. If you are putting a Solo DL into an older vehicle and need a power supply cable, use this and use only the + and - wires and fold back the can inputs. The AiM V02569050 harness connects your Solo 2 DL to your ECU via CAN or RS232 wiring. One end has a 7-pin 712 (screw-in) connector to fit the Solo 2 DL, and the other has 6 non-terminated wires (CAN+, CAN-, RS232RX, RS232TX, Power, and Ground). Does not fit original AiM Solo DL. AiM Solo2 DL CAN/RS232 Wiring Harness (New Solo 2 DL) Details: Manufacturer: AiM Manufacturer part number: V02589050 Fits Solo DL: No Fits Solo 2 DL: Yes Fits Solo Base Model: No Fits Solo 2 Base Model: No Pins on AiM Solo DL Side: 7 Pin Thread on connector Vehicle Chassis Ends: 6 Non terminated wires Vehicle Chassis Ends Break Out: Red=12VDC, Black=Ground, Blue=ECU RS232TX, Blue=ECU RS232 CAN-, Gray ECU RS232 RX, Gray CAN+ AiM Solo 2 DL CAN/RS232 Wiring Harness (New Solo 2 DL) Wiring Codes: Red: 9-15VDC Black: Ground Grey: CAN+ Blue: CAN- Black: ECU RS232 RX Blue: ECU RS232TX Both blue wires are the same color, but each wire has an identifier tag stating the connection type

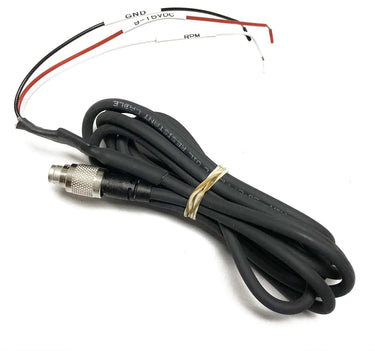

AiM Solo 2 DL RPM and Power Wiring Harness The AiM V02589020, called the AiM Solo 2 DL RPM Input Wire, is used to connect your AiM Solo 2 DL to an older generation (non-ECU) vehicle. On the bottom right of your Solo 2 DL there is an 8 pin connector that you can connect to the low voltage side of your coil. The peak can be anywhere from 150 to 400 V or from a square wave with a peak of 5 to 50 V. If you have a vehicle with no ECU or OBD-2 Port or a MSD ignition box, this is your easiest way to log RPM. By connecting the positive and negative wires, your Solo 2 DL unit will automatically top off the internal battery and power all down line appliances, such as SmartyCams and other powered devices. AiM Solo 2 DL RPM Input Wire Details: Manufacturer: AIM Manufacturer part number: V02589020 End 1: Male 712 8 Pin Screw-in End 2: Flying lead (open wires) 12 V Positive , Negative, and RPM input Length: 2 Meters AiM Solo 2 DL RPM Input Wire Uses: Solo 2 DL to older external coil engines Solo 2 DL to RPM tach lead Solo 2 DL to MSD ignition box

AiM CAN 7-Pin to CAN/RS232 Wiring Harness for Solo DL Moving your original AiM Solo DL from one car to another and need another harness for only power or both power and data input, this is your cable. If you are putting a Solo DL into an older vehicle and need a power supply cable, use this and use only the + and - wires and fold back the can inputs. This harness connects your SoloDL to your ECU via CAN or RS232 wiring. One end has a 7-pin 712 (screw-in) connector to fit the SoloDL, and the other has 6 non-terminated wires (CAN+, CAN-, RS232RX, RS232TX, Power, and Ground). Does not fit the new AiM Solo2 DL. AiM CAN 7-Pin to CAN/RS232 Wiring Harness for Solo DL Details: Manufacturer: AiM Manufacturer part number: V02569080 Manufacturer alternate part number: MC-569 Fits Solo DL: Yes Fits Solo 2 DL: No Fits Solo Base Model: No Fits Solo 2 Base Model: No Length: 2 meters Pins on AiM Solo DL Side: 7 Pin Thread on connector Vehicle Chassis Ends: 6 Non terminated wires Vehicle Chassis Ends Break Out: CAN+, CAN-, RS232RX, RS232TX, Power, and Ground (and one unused) Note: Not compatible with the original SmartyCam (gray unit with the viewing screen on top) or the later SmartyCam HD "Rev 1". The version 1 can be identified by a 7/8" diameter lens with either a 67 or 87 degree field of view, and a viewfinder flush with the front of the housing. Later SmartyCam HD Rev 2 had a larger 1 3/8" OD lens marked as 60 or 120 degree field of view and a cover over the front viewfinder held on by 8 screws. 1 - CAN+ (white)2 – GND (black)3 – 12v (red)4 - CAN- (blue)5 – K-Line (blue or orange)6 - N/A
