NASA Spec E46 Racing Brakes – Discovery Parts

Competition Motorsport CMS RF1 DOT4 Racing Brake Fluid (500 ml) from $21.95 $131.70

Buy 6+, Save $1 per bottle Buy 12+, Save $2 per bottle REDESIGNED BOTTLE, SAME TOP-OF-THE-LINE BRAKE FLUID Competition Motorsport RF1 fully synthetic Racing Brake Fluid is formulated to provide the highest, most reliable performance under racing and track-day conditions, where braking systems operate at very high sustained temperatures. RF1 exceeds all DOT 3 & 4 requirements and is compatible with all DOT 3, 4, and 5.1 fluids. (Not compatible with DOT5 or mineral-based brake fluids.) There is perhaps no single safety system more important in racing than brakes. And no single part of that system is more critical than brake fluid. At Competition Motorsport, we got tired of (and a little nervous) using "racing" brake fluid on the track that didn't live up to its claimed performance when things got heated. So we did something about it. Manufactured in partnership with the brake fluid supplier to many teams in Formula 1, WEC, and many other professional series, RF1 Racing Brake Fluid is formulated to maintain consistent viscosity, lubricity, and compressibility at extreme temperatures and line pressures found in racing, track days, and spirited driving. Bottom line: you can spend more money, but you can't buy higher-performing racing brake fluid! SPECIFICATIONS: Typical dry boiling point: 622 F (328 C) Typical wet boiling point: 399 F (204 C) Exceeds DOT3 & DOT4 standards Individual 500 ml (16.7 oz.) bottles Click Here for Product MSDS Sheet All brake fluid degrades over time (not mileage), attracting water as it ages, which, at high brake temperatures, can lead to fluid boil and brake fade or failure. That's why the "wet" (aged) boiling point of any brake fluid is substantially lower than the "dry" (new) boiling point. To maintain maximum braking performance, Competition Motorsport strongly suggests replacing your brake fluid before every track event, but at least every three months if you're consistently racing and/or driving at track days. It's cheap insurance against learning about brake fade the hard way!

Performance Friction PFC Brake Pads 0394.XX.20.44 from $373.95

0394.11.20.44 (11 Compound) A new generation sprint and medium distance friction: the ultimate in control with superior disc conditioning. Developed from 01 compound with improved bite, modulation, and release characteristics. It is ultra smooth and developed to reduce wheel locking at the end of braking while giving more cold and hot bite than the endurance oriented 08 compound. Brake with confidence; brake with ultimate control and modulation. 0394.08.20.44 (08 Compound) One of PFC's most popular compounds which came to fame in Endurance Sportscar and GT racing due to its performance in applications where smooth initial bite is a must. PFC08 has a slight friction rise with temperature, excellent release and modulation characteristics. Despite its considerable performance, 08 has the lowest wear rate of all PFC compounds and can easily match the wear characteristics of the other competitors' materials but with much higher bite and consistent performance across a broad temperature range. 0394.331.20.44 (331 Compound) 331 is the next generation of PFC endurance material. Improved control with ABS, and gentle on discs. The 331 Carbon Metallic ® compound has been developed with higher initial bite than PFC’s renowned 08 endurance compound. The 331 has improved release, and continues to offer exceptional control and feel. It boasts low wear rate and exceptional disc conditioning.

Performance Friction PFC Brake Pads 0548.XX.16.44 from $296.95

The PFC 0548.11.16.44 and PFC 0548.08.18.44 have dominated the NASA Spec E46 class since inception. The PFC 0548 pad shape fits the rear axle of the E46 (non-M) chassis and comes in two popular compounds, the 08 and 11. 0548.11.16.44 (11 Compound) A new generation sprint and medium distance friction: the ultimate in control with superior disc conditioning. Developed from 01 compound with improved bite, modulation, and release characteristics. It is ultra smooth and developed to reduce wheel locking at the end of braking while giving more cold and hot bite than the endurance oriented 08 compound. Brake with confidence; brake with ultimate control and modulation. 0548.08.16.44 (08 Compound) One of PFC's most popular compounds which came to fame in Endurance Sportscar and GT racing due to its performance in applications where smooth initial bite is a must. PFC08 has a slight friction rise with temperature, excellent release and modulation characteristics. Despite its considerable performance, 08 has the lowest wear rate of all PFC compounds and can easily match the wear characteristics of the other competitors' materials but with much higher bite and consistent performance across a broad temperature range.

Girodisc Girodisc Pad Spreader GDPS01 $250.00

Girodisc Brake Pad Spreader This indispensable tool is used by race teams, shops, and enthusiasts alike who have high performance four- and six-piston calipers. The spreader is designed to spread brake pads and pistons in four- and six-piston calipers to facilitate quick replacement of pads and/or rotors in a shop or racing environment.No more screwdrivers, pliers, hammers, or C-clamps! This tool will retract the pistons evenly and all the way back into their bores with one squeeze of the levers. The Girodisc spreader was designed around popular four-piston and six-piston calipers from Brembo, AP Racing, Alcon, and other performance calipers in racing and road use. To help fit in any caliper, the amount of throw is adjustable.Insert the spreading plates one way for wider six-piston calipers, then turn the spreader 90o and use the plate sides for four-piston calipers.The Girodisc Pad Spreader is made from heavy-gauge steel and is powder-coated for durability. The slider is cadmium-plated, and nylon pivot bushings ensure smooth action. The Girodisc Pad Spreader will quickly become an invaluable tool for any race team, shop, or enthusiast who changes pads and rotors with any frequency.

Pagid Pagid Racing Brake Pads No. 1295 from $349.95

Fits These Vehicles: Make Model Build (Year) Front Rear Alfa Romeo 156 2.0 16V 95 - 98 X BMW 120d & 130i [E81 & E87] 03 - 12 X BMW 330i [E46] 00 - 05 X BMW M3 [E36] 3.0 & 3.2 92 - 99 X BMW M3 [E46] & M3 CSL 00 - 07 X BMW M5 [E34] 88 - 97 X BMW Z3 M Roadster 3.2i 97 - 03 X BMW Z4 M Coupe 06 - X RS 14: The PAGID RS14 (Black) is a high friction value ceramic compound with very good modulation and high fade resistance. A very popular, aggressive pad with strong initial bite and high torque. In addition to the track-day environment, RS14 has shown success in short- to medium-distance circuit racing as well as gravel and tarmac rallying. RST 1: PAGID RST1 is a high average friction, aggressive pad with instant pedal response, quick release, a firm pedal at all temperatures, and a progressive torque curve. Suitable for applications with high down-force and/or very high grip. RSL 1: PAGID RSL1 is a complex formulation of ceramic materials. Compared to metallic compounds, it has superior thermal insulation and higher heat resistance. It is a medium-friction compound that is rotor friendly and was designed to meet the latest ecological standards in endurance racing.

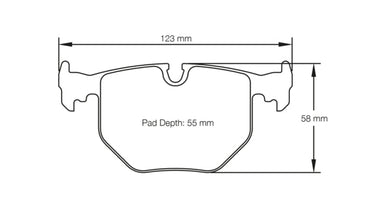

Pagid Pagid Racing Brake Pads No. 2685 from $270.42

Make Model Build (Year) Front Rear BMW 330i [E46] 00 - 05 X BMW 850 [E31] 90 - 99 X BMW M3 [E46] & M3 CSL 00 - 07 X BMW M5 [E39] 98 - 03 X BMW X5 4.4 00 - X BMW Z4 M Coupe 06 - X BMW Z8 4.9 00 - 03 X Maserati BiTurbo 2.5 & 2.8 94 - 99 X RSL 29: The PAGID RS29 (Yellow) is the world-leading endurance brake pad used by most of the winning teams in motorsport. Although designed primarily for endurance racing, many competitors use this material successfully for sprint and short distance races also. RS29 has also found favor in the growing track day market due to the level of control, good cold performance, long life and low disc wear. RSL1: PAGID RSL1 has a high ceramic content with superior thermal insulation and higher heat resistance than metallic pad compounds. They feature excellent pad wear under endurance conditions, excellent rotor life, and are less aggressive than RST pads with excellent brake balance and modulation. RST 3: Pagid RST brake pads were developed exclusively for use in Sprint Racing and Rally competition, with high average friction, aggressive instop behavior and instand pedal response. They feature a consistantly firm brake pedal at all temperatures and are fade resistant at even the highest brake disc temperatures. The RST3 pads offer a medium friction metal-ceramic type compound with good initial bite and still excellent modulation and release characteristics. Medium torque, fade resistant up to 800 degrees celcius, and the lowest heat conductivity in the RST range.

Find anything you need

Spec E46 (01-06 330i)
